Product Details
Features
■Programmable function key setting
■Monitoring/scanning function
■Transmission Time Limit (TOT)
■ Sub-audio (CTCSS) Digital sub-audio (CDCSS) settings
■Voice prompt function
■High and low power selection settings
■Power saving/alarm function
■Companding/scrambling/FM functions
■Side key custom function
■Broken code anti-break function
■Intelligent noise reduction/howling suppression (optional function)
■VOX/IVOX voice-activated hands-free calling (optional function)
■Optional TYPE-C configuration battery
Product parameters
Frequency range: 400-480Mhz
Output power: 5/12W high and low power
Sensitivity: < 0.16μV (12dB SINAD)
Battery voltage: Standard battery 2600MAH/DC7.4V (optional thin battery 1600MAH)
Modulation method: FM
Intermodulation anti-interference: 50dB
Memory channels: 16 channels
Maximum frequency offset: ≤ ± 5KHz
Audio power: ≥1000mW
Antenna Configuration: Standard Antenna
Residual wave radiation: ≤60dB
Receiving current: ≤100mA
Antenna Impedance: 500
Pre-emphasis characteristic: 6dB
Squelch waiting: 20mA
Working mode: same-frequency simplex or different-frequency simplex
Size: 123.5*57*43mm
Weight: 247g

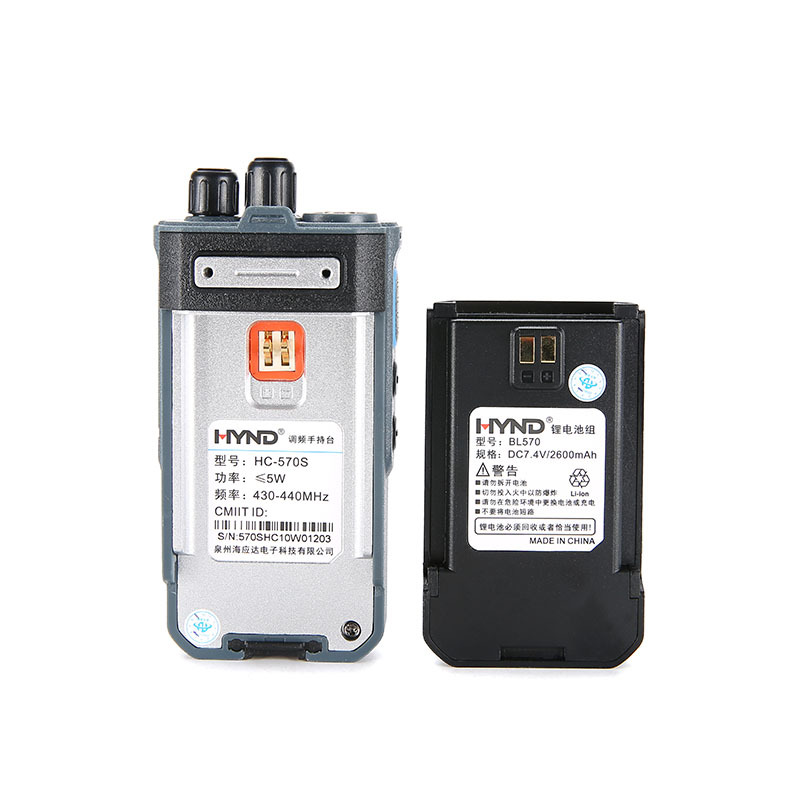

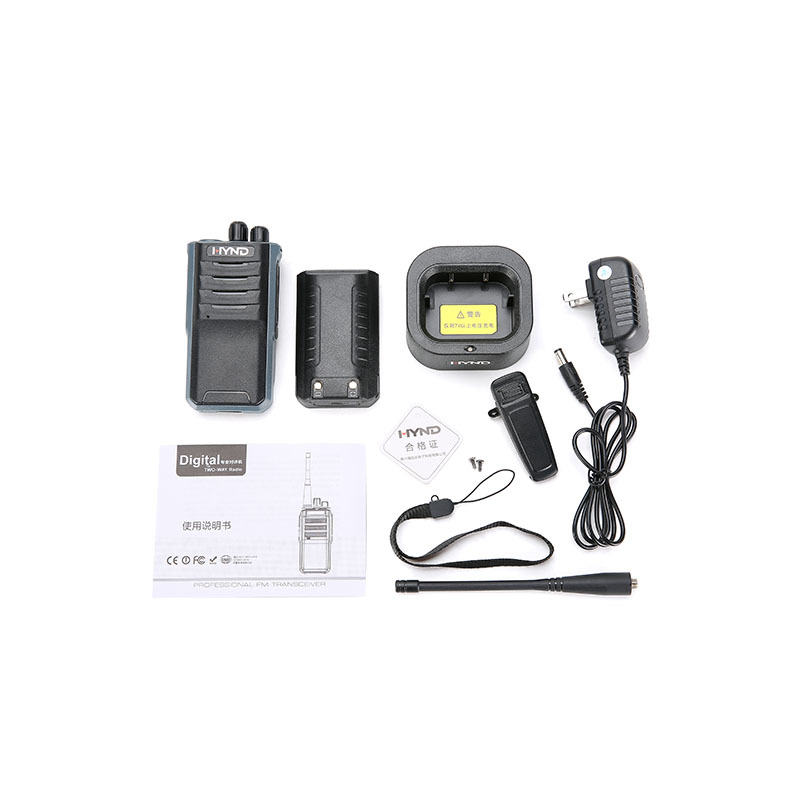

Battery accessories
