HYND Analog series

Model:

HC-300


Product features

Feedback

Category:

Product Details


Features

■Programmable function key setting

■Monitoring function

■Scan function

■Transmission Time Limit (TOT)

■ Sub-audio (CTCSS) Digital sub-audio (CDCSS) settings

■Voice prompt function

■High and low power optional settings

■Power saving alarm function

■Companding/scrambling/FM functions

■Broken code anti-break function

■Optional TYPE-C battery



Product parameters

Frequency range: 400-480Mhz

Output power: 2/5W

Sensitivity: < 0.16μV (12dB SINAD)

Battery voltage: standard 1600MAH/DC7.4V (optional 2600MAH)

Modulation method: FM

Intermodulation anti-interference: 50dB

Memory channels: 16 channels

Maximum frequency offset: ≤ ± 5KHz

Audio power: ≥100mW

Antenna Configuration: Standard Antenna

Residual wave radiation: ≤60dB

Receiving current: ≤100mA

Antenna Impedance: 500

Pre-emphasis characteristic: 6dB

Squelch waiting: 20mA

Working mode: same-frequency simplex or different-frequency simplex

Size: 123.5*57*36mm

Weight: 220g

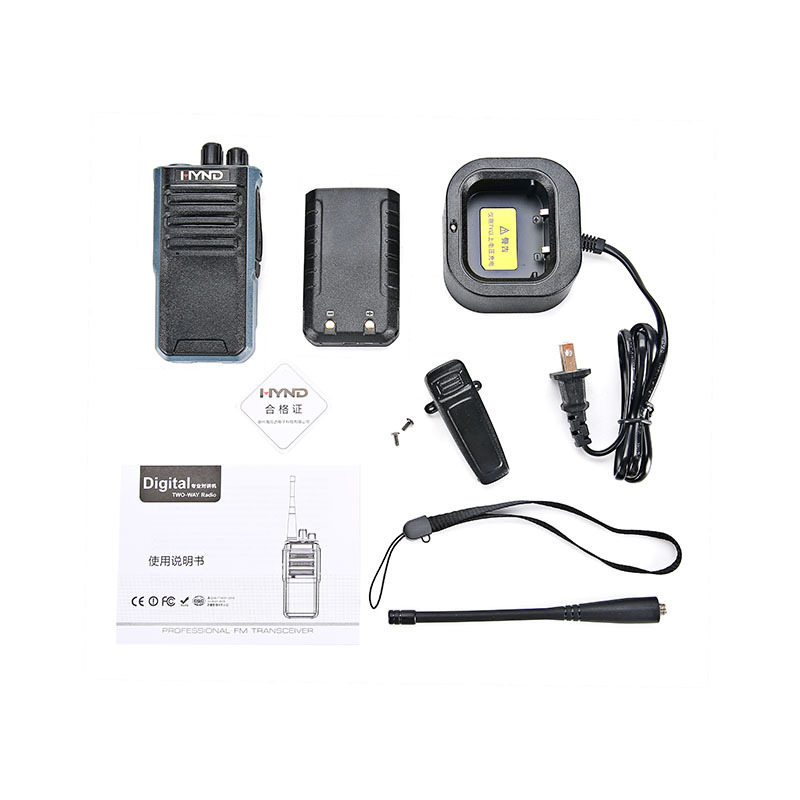

battery accessories
